Simos Tools

Used to log and flash Simos ECU by VW/Audi

Used to log a configurable set of PIDS in mode 22 or 3E to assist in ECU flash tuning using the popular Macchina A0 (or DIY clone) and our free firmware:

https://github.com/Switchleg1/esp32-isotp-ble-bridge.

Found us on Facebook:

https://m.facebook.com/groups/926154161803291/

Additional features:

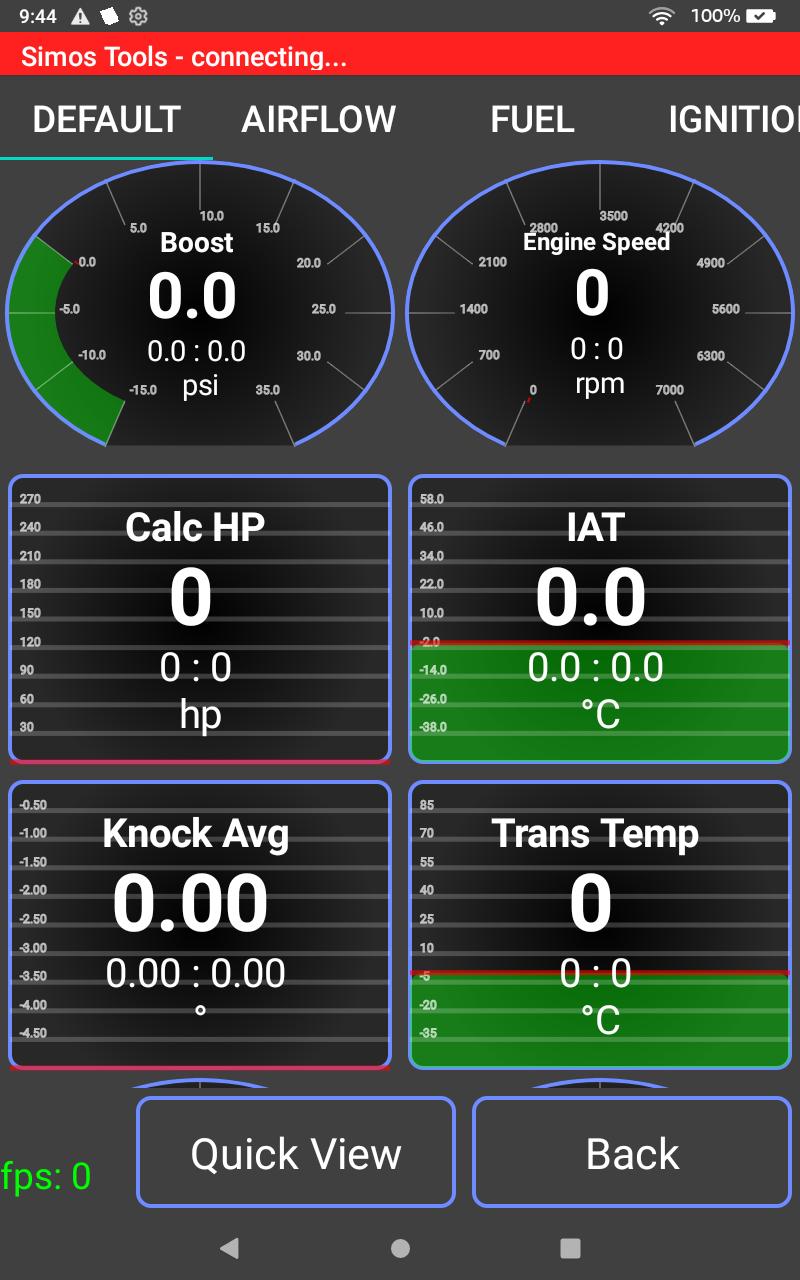

-Long click on any active gauge will reset min/max values on all gauges.

-Long click on "Quick View" will load into a full screen mode displaying the first 8 gauges on the current tab.

-Gauge styles can be set individually using the tab field.

Examples include:

||

Default|ROUND|0 - this will force this PID to display as a round gauge on the default tab and place it in the top left corner of the tab.

Airflow|BAR_H - this will force a horizontal style view on the Airflow tab.

-Logging will take place once all conditions in the logging equation have been met. Example: "c>0|r>1000|d>70" - logging will start if cruise control is enabled, when RPM is above 1000 and when pedal position is above 70%.

What's New in the Latest Version 1.48

Last updated on Jul 7, 2024

1.48: adds firmware 1.03 and adjusts mode 22 min address to 0x100
1.47: adds OTA firmware update support.
1.46: phone accelerometer support.
1.45: more simos 19 support.
1.44: adds support for firmware v1.00 and simos 19 logging.
1.43: adds V33 support.
1.42: adds L86 support and the ability to edit long coding.
1.41: adds LB9 support.
1.36: adds DSG routines.
1.35: adds more trigger options and expression parsing.

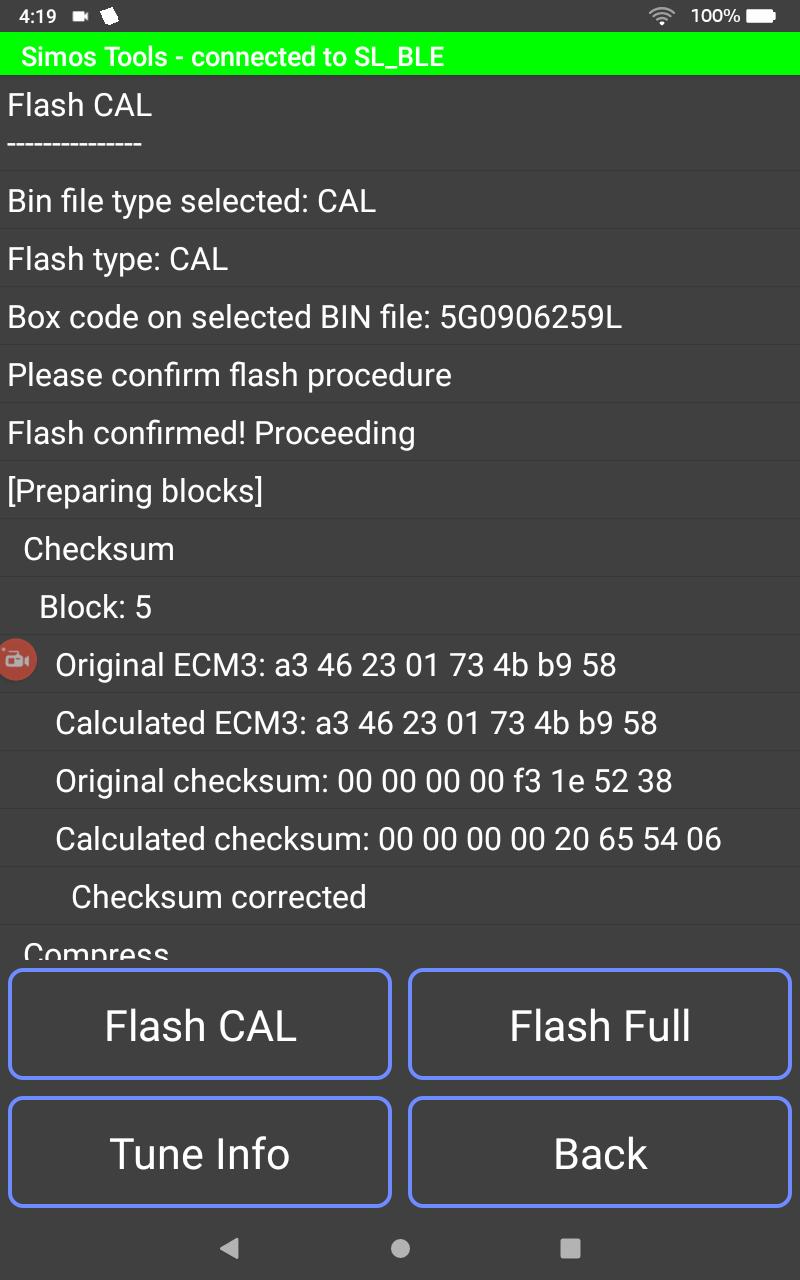

1.33: adds F40M flash support.

Simos Tools is a software suite designed specifically for automotive diagnostics, tuning, and ECU remapping. It provides a comprehensive set of tools and features to help users analyze, modify, and optimize vehicle performance.

Key Features

* ECU Reading and Writing: Simos Tools allows users to read and write data from the vehicle's ECU, giving them access to critical engine parameters and settings.

* Data Logging: The software can log various engine data in real-time, such as fuel injection, ignition timing, and boost pressure. This data can be analyzed to identify performance issues or optimize tuning parameters.

* Map Editing: Simos Tools provides advanced map editing capabilities, enabling users to modify engine maps and adjust parameters such as fuel delivery, boost control, and torque limits.

* DTC (Diagnostic Trouble Code) Reading and Clearing: The software can read and clear DTCs stored in the ECU, helping users identify and resolve vehicle faults.

* Tuning File Sharing: Simos Tools allows users to share tuning files with other users, facilitating the exchange of knowledge and expertise.

Benefits

* Enhanced Performance: By optimizing engine maps and settings, Simos Tools can improve vehicle performance, increase power, and reduce fuel consumption.

* Troubleshooting: The software's diagnostic capabilities help users identify and resolve vehicle issues quickly and efficiently.

* Customization: Simos Tools provides the flexibility to customize vehicle settings to suit individual preferences and driving styles.

* Knowledge Sharing: The tuning file sharing feature enables users to learn from others and contribute to the community.

Supported Vehicles

Simos Tools supports a wide range of vehicles from various manufacturers, including BMW, Audi, Volkswagen, and Mercedes-Benz. It covers both gasoline and diesel engines with Siemens or Bosch ECUs.

User Interface

Simos Tools features a user-friendly interface with intuitive menus and customizable dashboards. It provides comprehensive help documentation and tutorials to assist users with various operations.

System Requirements

Simos Tools requires a Windows-based operating system and a compatible ECU interface (e.g., KESSv2, KTAG). The software is regularly updated with new features and bug fixes to ensure compatibility with the latest vehicle models and ECUs.
